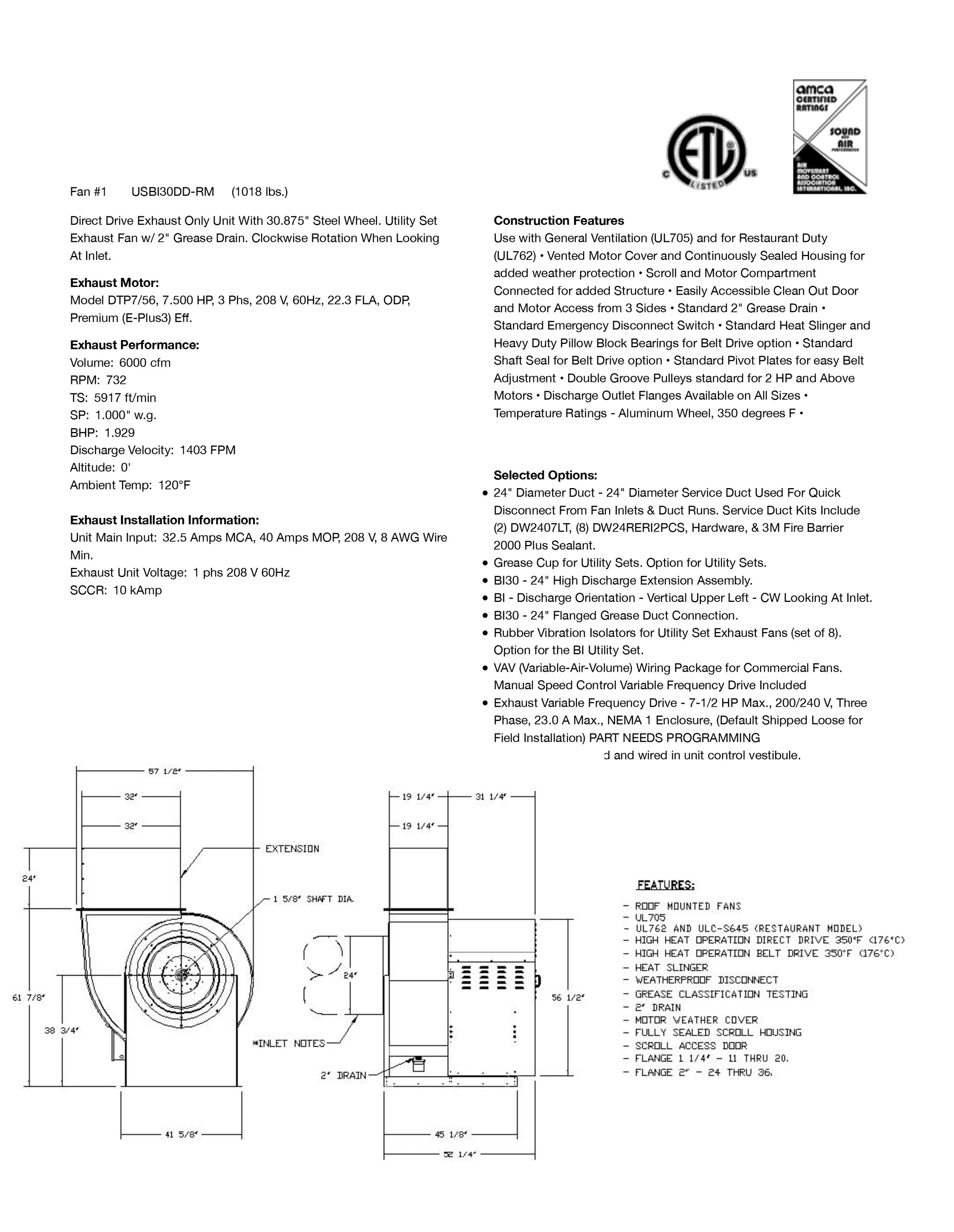

Utility Set Direct Drive Grease Rated Exhaust Fan- High Temperature Heavy Duty General and Restaurant Use Exhaust Ventilator. 7.5 HP 208 Volt Three Phase Motor 6000-9,000 CFM (MODEL MH-USBI30DD)

$7,129.99

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.
Direct Drive Utility Set Exhaust Only Unit With 30.875” Wheel. 1018 LBS. Exhaust Fan handles 6000-9,000 CFM @ -1.000" wc ESP, Fan runs at 732 RPM.
Exhaust Motor: 7.5 HP, 3 Phs, 208 V, 60Hz, 22.3 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 24” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.
