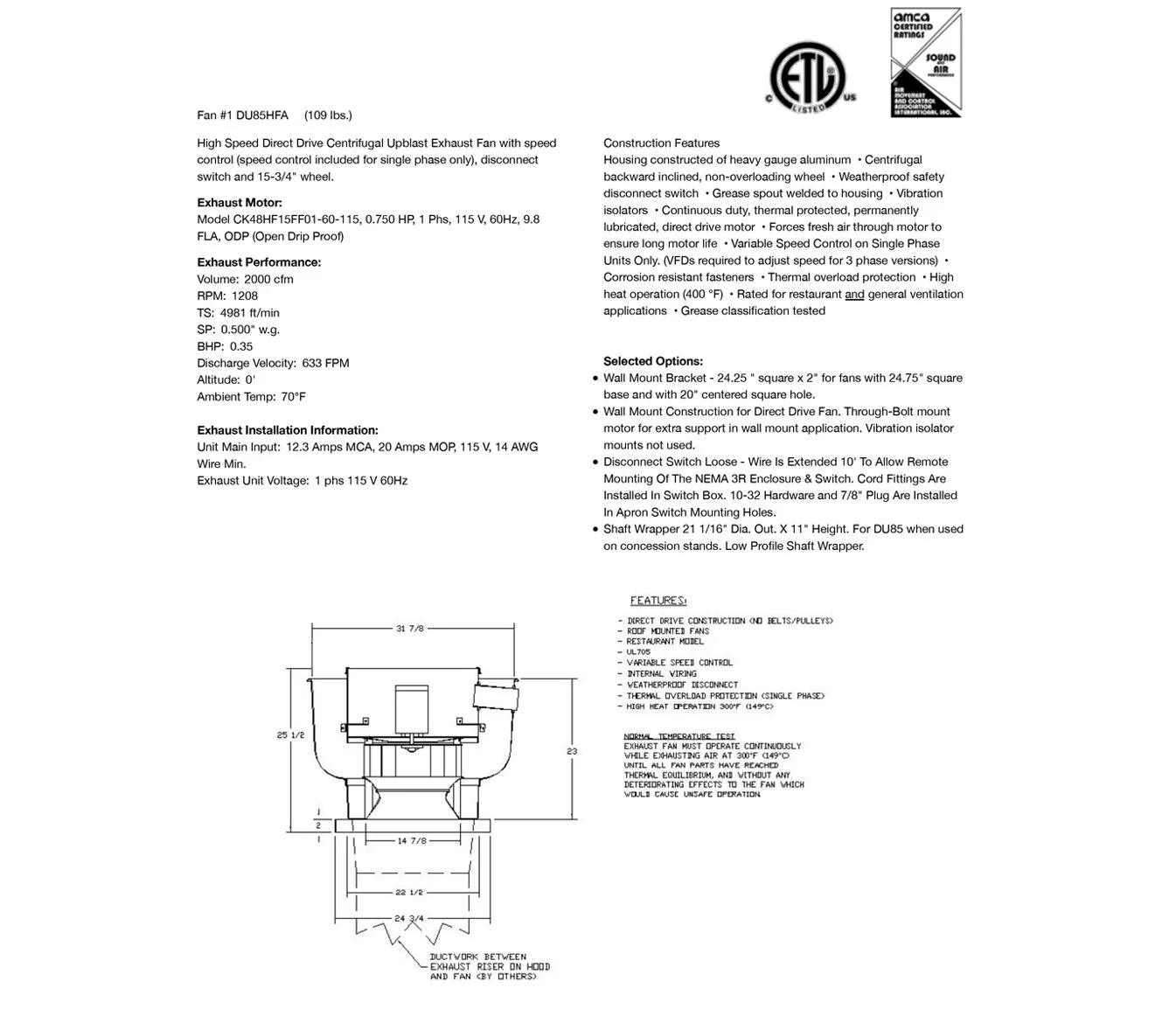

Low Profile Grease Rated Food Truck Exhaust Fan- Direct Drive Centrifugal Upblast Exhaust Fan with speed control- 24.75" Base, 0.75 HP 115 Volt Single Phase Motor, 1500-2200 CFM (MH-DU85HFA)
Low Profile High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 15-3/4" wheel.
24 3/4" x 24 3/4" Fan Base Dimension/ 109 LBs/ 1500-2200 CFM/ 0.75 HP 115 volt Single Phase Motor.
Rated for restaurant grease and general ventilation applications. UL705, UL762, & ULC-S645. Included with the exhaust fan is a mounting bracket specific for food trucks, concession trailers, and wall mount applications.
Construction features include a heavy gauge aluminum housing, a backward inclined, non-overloading wheel, a safety disconnect switch, a variable speed control, vibration isolators, and quick release latches for motor compartment access.
Manufactured in the USA. Two year warranty. Technical support available upon purchase.
