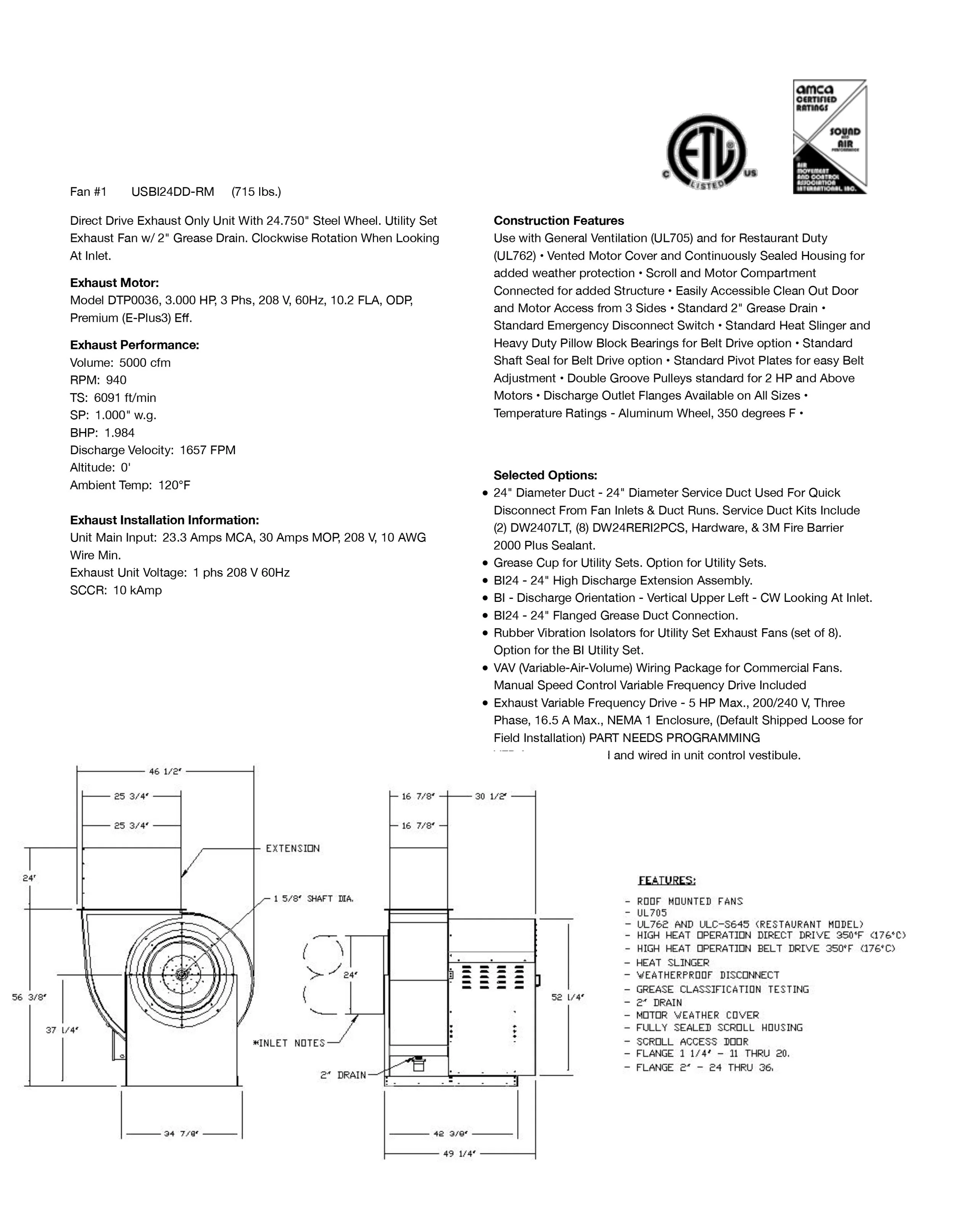

Utility Set Direct Drive Grease Rated Exhaust Fan- High Temperature Heavy Duty General and Restaurant Use Exhaust Ventilator. 3.0 HP 208 Volt Three Phase Motor 5000 CFM (MODEL MH-USBI24DD)

$5,099.99

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.
Direct Drive Utility Set Exhaust Only Unit With 24.75” Wheel. 715 LBS. Exhaust Fan handles 5000 CFM @ -1.000" wc ESP, Fan runs at 940 RPM.
Exhaust Motor: 3.0 HP, 3 Phs, 208 V, 60Hz, 10.2 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 24” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.

Quantity:

Add To Cart (Ships in 4-5 Days)

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.
Direct Drive Utility Set Exhaust Only Unit With 24.75” Wheel. 715 LBS. Exhaust Fan handles 5000 CFM @ -1.000" wc ESP, Fan runs at 940 RPM.
Exhaust Motor: 3.0 HP, 3 Phs, 208 V, 60Hz, 10.2 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 24” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.
