Utility Set Direct Drive Grease Rated Exhaust Fan- High Temperature Heavy Duty General and Restaurant Use Exhaust Ventilator. 2.0 HP 208 Volt Three Phase Motor 4000 CFM (MODEL MH-USBI20DD)

$3,669.99

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.

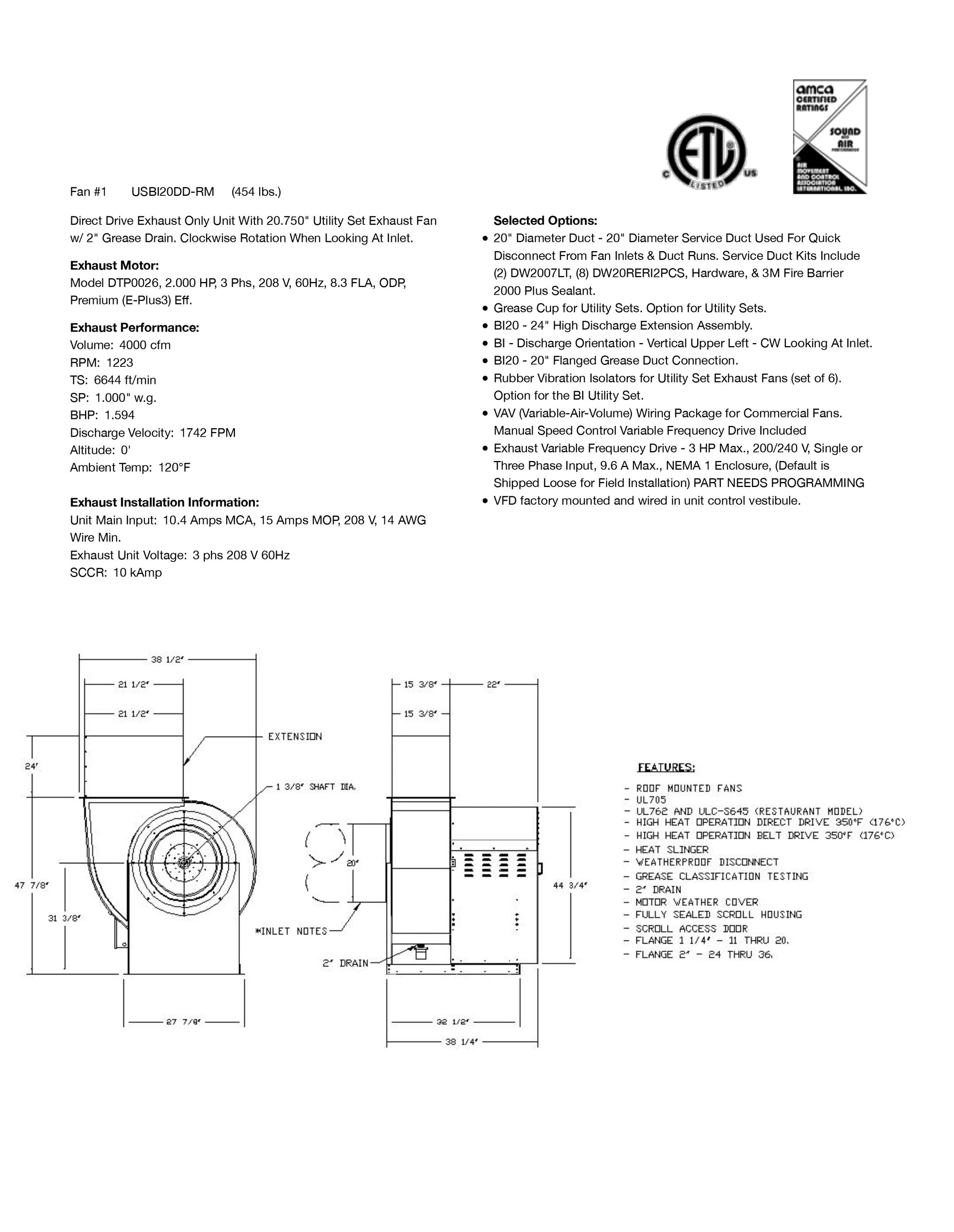

Direct Drive Utility Set Exhaust Only Unit With 20.75” Wheel. 454 LBS. Exhaust Fan handles 4000 CFM @ -1.000" wc ESP, Fan runs at 1223 RPM.
Exhaust Motor: 2.0 HP, 3 Phs, 208 V, 60Hz, 8.3 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 20” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.

Quantity:

Add To Cart (Ships in 4-5 Days)

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.
Direct Drive Utility Set Exhaust Only Unit With 20.75” Wheel. 454 LBS. Exhaust Fan handles 4000 CFM @ -1.000" wc ESP, Fan runs at 1223 RPM.
Exhaust Motor: 2.0 HP, 3 Phs, 208 V, 60Hz, 8.3 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 20” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.

Utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. General Ventilation (UL705) and for Restaurant Duty (UL762) model MH-USBI is specifically intended for high temperature and/or heavy grease applications.
Direct Drive Utility Set Exhaust Only Unit With 20.75” Wheel. 454 LBS. Exhaust Fan handles 4000 CFM @ -1.000" wc ESP, Fan runs at 1223 RPM.
Exhaust Motor: 2.0 HP, 3 Phs, 208 V, 60Hz, 8.3 FLA, ODP (Open Drip Proof Motor). Variable Frequency Drive provided to adjust fan speed.
Included with the exhaust fan is a restaurant duty grease cup, vibration isolators, 24” high optional discharge extension, weatherproof disconnect, clean out door, and a 20” inlet service duct connection.
Manufactured in the USA. One year warranty. As all fans are custom built, no returns or exchanges are accepted.
