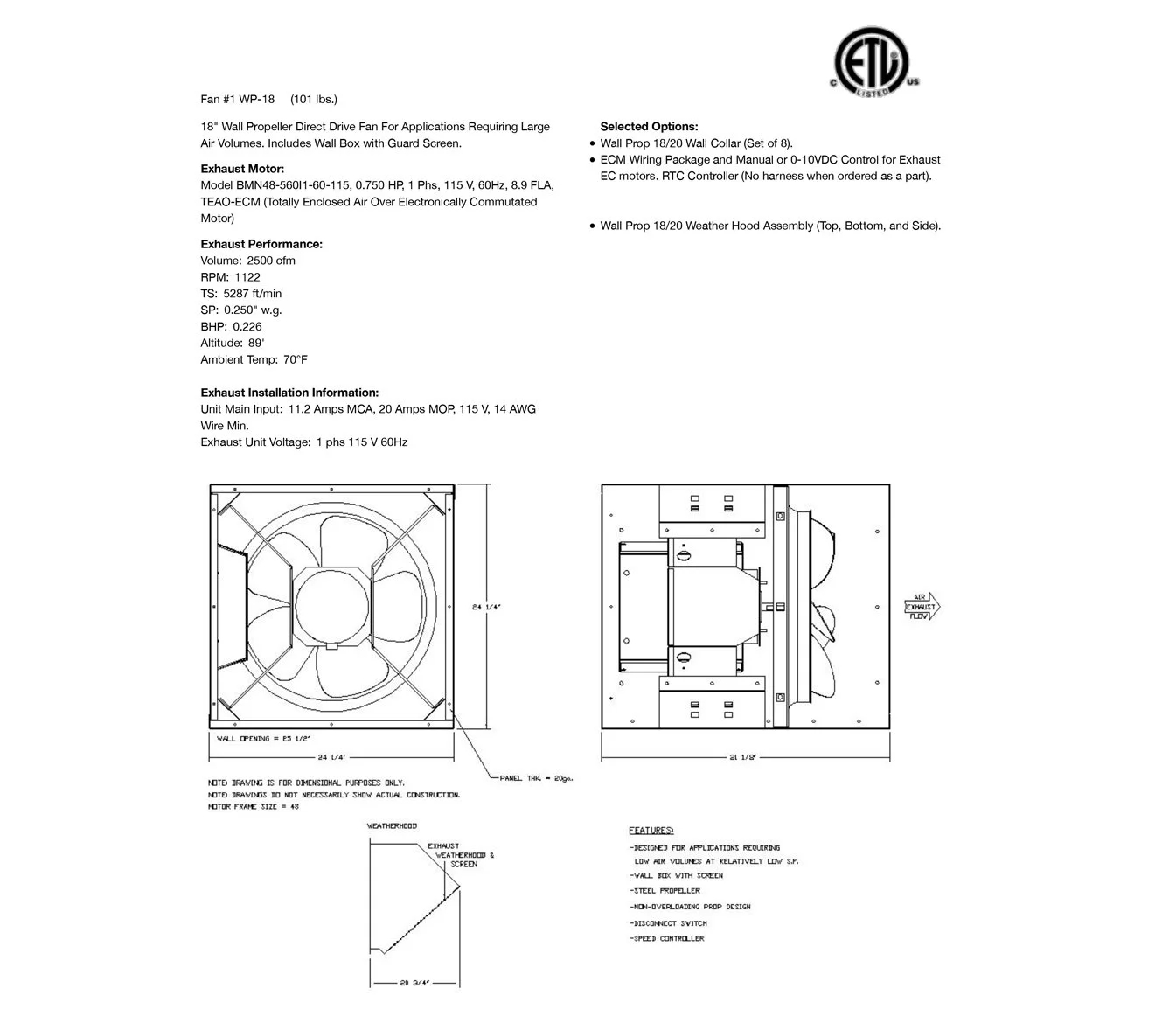

WP-18 DRAWING.jpg
WALL PROP COVER.jpg
WALL PROP 2.jpg
Screen Shot 2019-08-14 at 2.18.28 PM.jpg
outside building.jpg
inside building.jpg
WP-18 DRAWING.jpg

Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes. Includes Wall Box with Guard Screen., 0.75 HP 115 Volt Single Phase Motor, 1800-2600 CFM (MODEL MH-WP-18)

$1,669.99

  • 18" Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes. Includes Wall Box with Guard Screen.

  • 24.25" high x 24.25" wide x 21.125" deep Fan Dimension/ 101 LBs/ 1800-2600 CFM/ 0.75 HP, 1 Phs, 115 V, 60Hz, 8.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)

  • Optional Weather Hood Assembly and Wall Collar are included.

  • Construction features include G90 steel housing, mounted disconnect switch, mounted variable speed controller, OSHA rear guard, and dynamically balanced steel propellers.

  • Manufactured in the USA. One year warranty. Technical support available upon purchase. .As all fans are custom built, no returns or exchanges are accepted.
